How to Choose a Fiberglass Mesh Factory in China: A Technical Guide to Scrim, Corner Tape, Woven Roving, and Open-Weave Fabrics
A procurement manager sources fiberglass mesh from a Chinese supplier, only to find that the alkali resistance falls short of the project specification after the first batch arrives. The wall reinforcement fails within two years, and the blame cycle begins. This scenario repeats across the industry because selecting a Fiberglass Mesh Factory or Fiberglass Mesh Supplier based solely on price ignores the technical variables that determine real-world performance. Engineers and buyers searching for China Fiberglass Mesh or Fiberglass Mesh Manufacturers China need to evaluate not just cost, but also yarn quality, coating chemistry, and manufacturing consistency. This article covers the full product spectrum—from Scrim Corner Tape and Wall Corner Tape to Woven Roving, Heavy Woven Roving, and Open-Weave Roving—and provides a framework for qualifying a Fiberglass Mesh Manufacturer against measurable technical criteria. Key takeaway: the best Fiberglass Mesh Suppliers combine consistent tensile strength, verified alkali resistance, and precise dimensional control with transparent quality documentation.
Technical Core: Understanding the Product Families
Fiberglass Mesh for Construction and Waterproofing

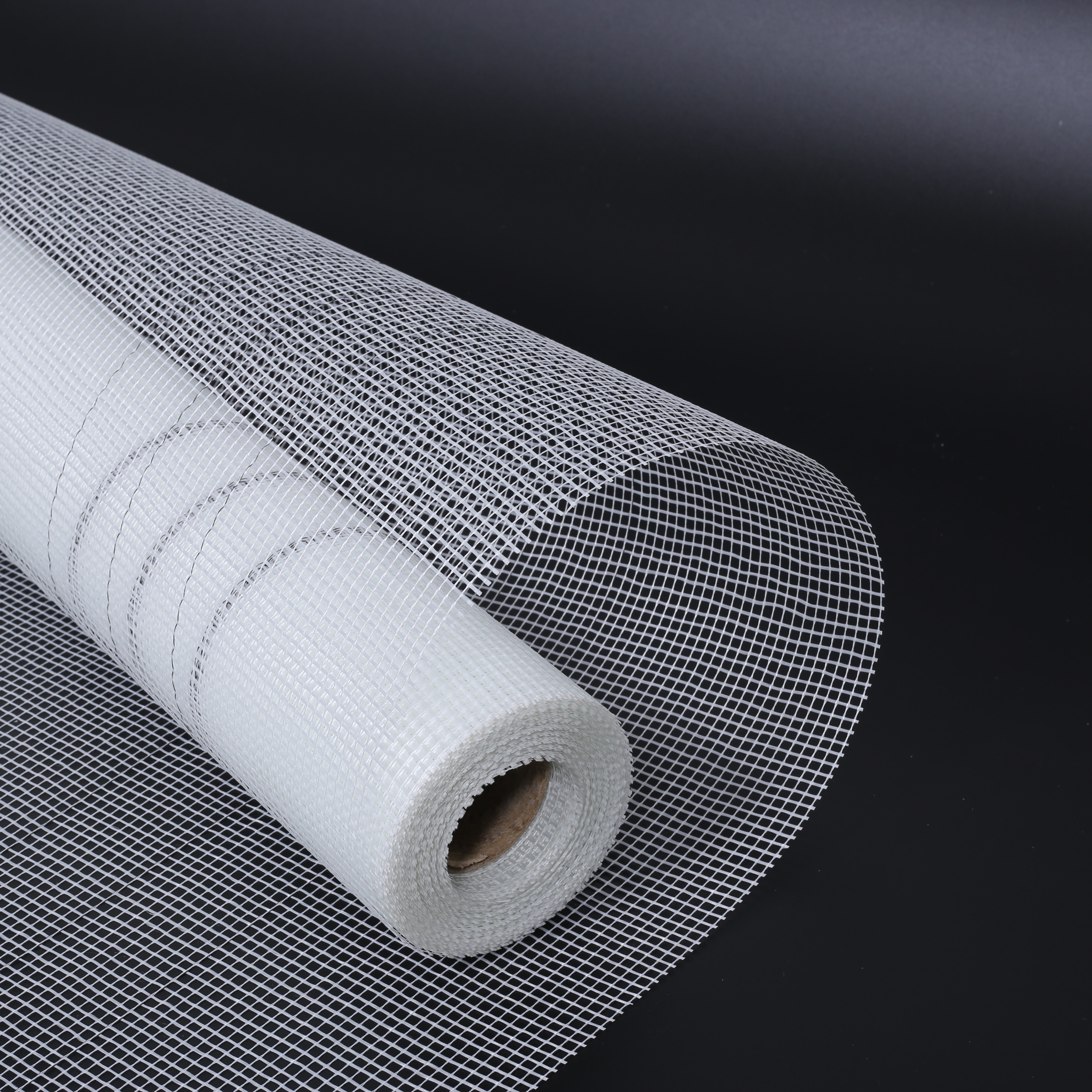

Fiberglass Mesh is an open-weave fabric made from continuous alkali-resistant (AR) glass fibers, coated with a polymer latex emulsion. The coating protects the glass from mechanical damage during handling and provides a bonding surface for cementitious or adhesive systems. Mesh counts typically range from 4 × 4 to 12 × 12 threads per inch, with areal weights from 60 to 350 g/m².
Alkali Resistant Fiberglass Mesh is the standard specification for exterior insulation finishing systems (EIFS), tile backing, and concrete reinforcement. The critical performance metric is tensile strength retention after alkaline exposure. According to industry-standard protocols (ETAG 004 and similar), a qualified product must retain at least 75% of its original tensile strength after 28 days immersion in a simulated alkaline solution at 23°C. High-quality Fiberglass Mesh In China from established Fiberglass Mesh Manufacturers routinely achieves 85% or higher retention.
Woven Roving and Heavy Woven Roving
Scrim Corner Tape and Wall Corner Tape are narrow-width fiberglass mesh strips (50–100 mm wide) pre-folded at a 90° angle. They reinforce interior and exterior corners in drywall, plaster, and EIFS systems. The open weave permits joint compound penetration for monolithic bonding. Fold integrity—the ability to hold the crease without fraying—is a key quality indicator.
Scrim Corner Tape and Wall Corner Tape
Fiberglass Mesh Tape For Waterproofing is a narrower, denser variant designed for sealing joints in waterproof membranes. It typically uses a 7 × 7 or 9 × 9 mesh count with a heavier coating weight (≥ 20% by mass) to resist moisture migration.
Roofing Fiberglass Mesh is engineered for asphalt and modified bitumen roofing systems, requiring thermal stability at temperatures up to 260°C during application.
Application Scenarios and Depth Solutions
Scenario 1: Qualifying a Fiberglass Mesh Supplier for EIFS and Concrete Reinforcement
When sourcing Fiberglass Mesh For Concrete or EIFS reinforcement, the primary risk is receiving mesh with inadequate alkali resistance or inconsistent tensile strength. A reliable Fiberglass Mesh Supplier China should provide traceable quality data for every production lot.
| Parameter | Standard Economy Mesh | Verified-Quality Mesh (Qualified Supplier) |
|---|---|---|
| Tensile strength (warp, N/50mm) | 800–1000 (claimed) | 1200–1500 (tested per lot) |
| Alkali resistance (28d, pH 12.5) | No data or < 60% retention | ≥ 80% retention (third-party report) |
| Areal weight tolerance | ± 10% or unstated | ± 5% (COA provided) |
| Coating content (% by mass) | 10–15% (uneven) | 18–22% (uniform) |
| Roll length consistency | ± 3% variation | ± 1% variation |
| Packaging | Standard polybag | Shrink-wrapped, palletized, labeled |
Scenario 2: Selecting Woven Roving for Composite Laminates
For structural composite parts—boat hulls, storage tanks, grating—the choice of Woven Fiberglass Roving affects laminate strength, handling speed, and resin consumption.
| Parameter | Chopped Strand Mat (CSM) | Heavy Woven Roving (600–900 g/m²) |
|---|---|---|
| Achievable fiber volume fraction | 15–25% | 40–55% |
| Tensile strength (MPa) | 60–100 | 250–400 |
| Flexural modulus (GPa) | 5–8 | 14–20 |
| Impact resistance | Low | High |
| Layers needed for 5 mm laminate | 6–8 | 2–3 |
| Resin consumption per m² | Higher (due to mat absorption) | Lower (controlled by fabric structure) |
Scenario 3: Using Corner Tape for Crack Prevention in Drywall and EIFS
Corner cracking is the most common post-installation defect in drywall and exterior insulation systems. Wall Corner Tape made from Alkali Resistant Fiberglass Mesh provides bidirectional reinforcement at the joint.
Woven Roving (also called Roving Fabric or Woven Fiberglass Roving) is a coarse textile made from bundled continuous glass filaments (rovings) woven in a plain or twill pattern. Areal weights range from 300 to 900 g/m². It is the primary reinforcement for hand lay-up and spray-up composite manufacturing.
Heavy Woven Roving refers to fabrics above 600 g/m², used for thick laminates requiring high impact resistance and flexural strength. Bulk Fabric and Coarse Weave Fiberglass are interchangeable terms describing heavy, open-structure rovings designed for rapid resin saturation.
Open-Weave Roving has wider spacing between yarns (typically 5–10 mm), allowing fast wet-out in thick resin applications and improved interlaminate bonding in multi-layer stacks.
Frequently Asked Questions
How do I verify the quality of a fiberglass mesh manufacturer in China?
Request third-party test reports for alkali resistance (ETAG 004 or equivalent), tensile strength per ASTM D5034, and areal weight tolerance. Ask for a factory audit video or arrange a visit. Check export documentation for compliance with your target market standards (ASTM, EN, AS). Established Fiberglass Mesh Manufacturers China like those listed on ruifiber.com provide traceable COAs for each lot.
What is the difference between fiberglass mesh tape for waterproofing and standard drywall tape?
Waterproofing-grade tape uses a denser weave (7×7 or 9×9 mesh) and a heavier polymer coating (≥ 20% by weight) to resist moisture penetration. Standard drywall tape uses a lighter 5×5 mesh with minimal coating, suitable only for indoor gypsum board joints. For wet areas, always specify Fiberglass Mesh Tape For Waterproofing.
Can woven roving be used for hand lay-up on curved surfaces?
Yes, but select Open-Weave Roving or Coarse Weave Fiberglass with a looser construction. Tight weaves resist draping and may bridge over concave molds. For tight radii (less than 50 mm), consider using stitched multi-axial fabric instead of woven roving.
How should fiberglass mesh be stored on site?
Store rolls upright in a dry environment at 15–25°C, away from direct sunlight and moisture. Humidity above 70% can degrade the coating over time. Use within 12 months of manufacture for optimal performance. Rolls stored on their sides may develop flat spots that cause handling issues during installation.
Conclusion and Contact Us
Selecting the right Fiberglass Mesh Factory or Fiberglass Mesh Supplier is a technical decision that directly affects project durability, installation speed, and warranty exposure. Whether you need Alkali Resistant Fiberglass Mesh for EIFS, Scrim Corner Tape for drywall, Heavy Woven Roving for composite structures, or Roofing Fiberglass Mesh for built-up roofing, the key metrics remain the same: consistent tensile strength, verified alkali resistance, precise dimensional tolerances, and transparent quality documentation.
Leading Fiberglass Mesh Manufacturers China offer not only competitive pricing but also traceable quality control and customization capabilities. To evaluate potential partners, request a product catalog, technical datasheets, and samples of their Fiberglass Mesh Tape, Woven Roving, and Corner Tape products. Visit ruifiber.com to explore a full range of fiberglass mesh solutions, or contact our engineering team directly for specification matching and comparative test data. We support custom widths, mesh geometries, and packaging configurations tailored to your project requirements.
